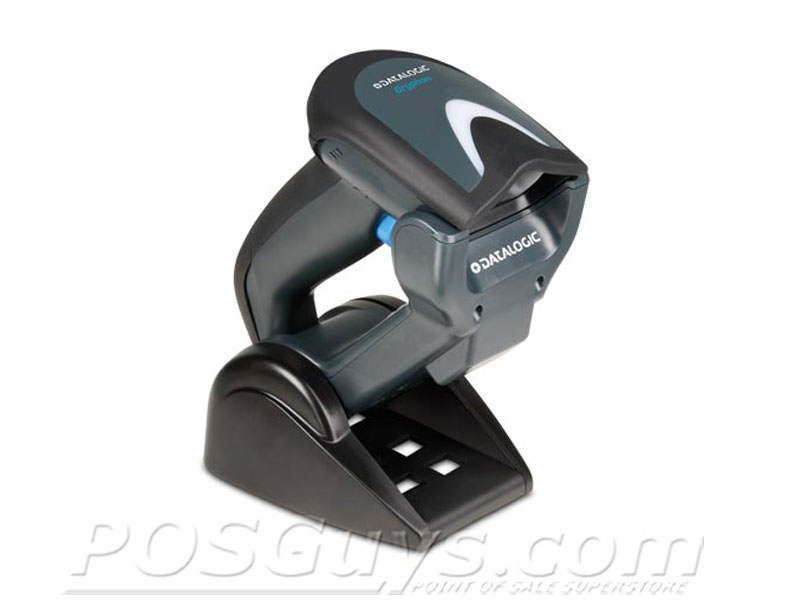

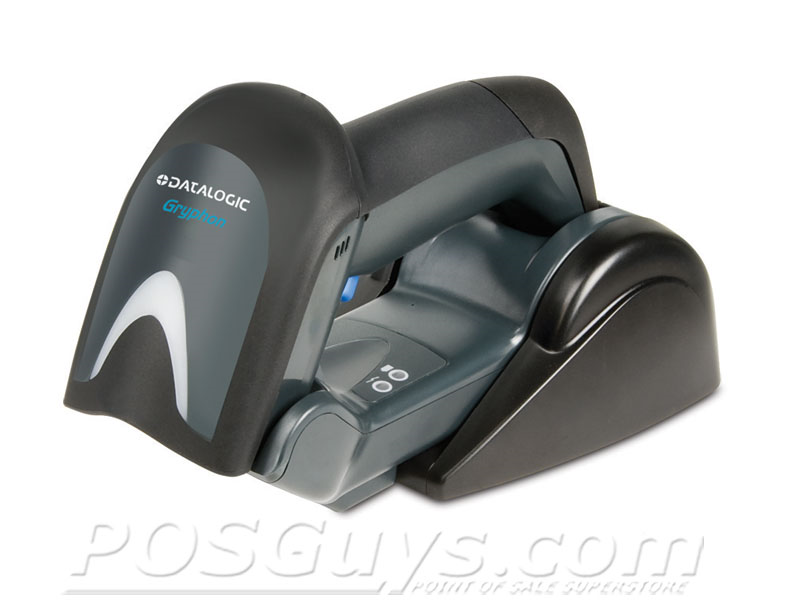

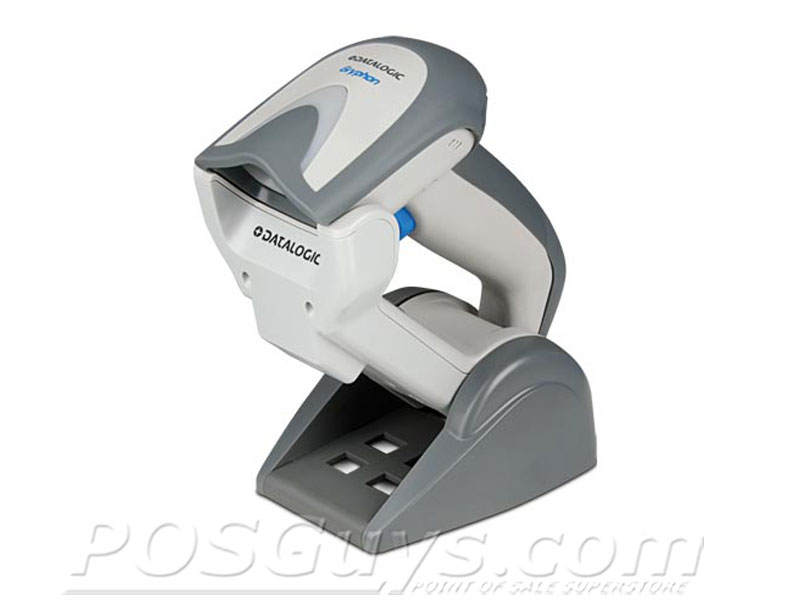

DataLogic Gryphon I GBT4100

The pictures shown are general images for product Gryphon I GBT4100 and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
Gryphon I GBT4100 Features
Bluetooth
Color Options

Black, White

Gryphon I GBT4100 Barcode Scanner


The DataLogic Gryphon I GBT4100 has reached end of life. It has been replaced by the DataLogic Gryphon 4500 Bluetooth.

The Datalogic Gryphon I GBT4100 barcode scanner gives any business a dual purpose cordless and presentation-style scanner. Ideal for those needing premium features and easy mobility, the Gryphon GBT4100 uses Bluetooth 2.0 wireless technology to give you an effective 98 feet of barcode scanning mobility. If you end up out of radio range, the Gryphon GBT4100 can switch to batch barcode storage mode, storing up to 1,200 barcodes until it regains a signal. If you work in an environment where barcode scanner beeps either can't or shouldn't be heard, Datalogic's Green Spot technology gives the Gryphon GBT4100 a visual cue that a barcode has been scanned.

Datalogic's 2-position cradle for the Gryphon GBT4100 adds versatility unique to the cordless barcode scanner market. The down position on the cradle allows for standard charging, similar to most retail and industrial cordless barcode scanners. While in the up position, the Gryphon GBT4100 can act as an autosense scanner while charging, eliminating the concern of depleted batteries. When the cradle is at an angle, the green spot technology will automatically activate, letting you see the optimum scanning location.

To ensure long life and maximum uptime, Datalogic built the Gryphon to handle abuse with ease. The reinforced body withstands drops of nearly 6 feet to concrete, excellent in case your employees are prone to bump equipment off counters or shelves. Dusty or dirty environments, such as garden centers or lumber yards, are no match for the Gryphon's IP52 seal, which keeps windblown dust and splashes of water from harming internal components. When combined with a 3 year warranty, the Datalogic Gryphon GBT4100 has the perfect combination of premium scanning features and durability.

Features
  • Can store up to 1,200 barcodes when out of radio range
  • 325 scan per second scan rate
  • User-Replaceable battery good for up to 33,000 scans per charge
  • Product Specifications
    Dimensions Scanner: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
    Cradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 in
    Weight Scanner: 225 g / 7.94 oz
    Cradle: 246 g / 8.68 oz
    Color Options Black
    White
    Interfaces Available USB
    Keyboard Wedge
    RS-232 Serial
    Scan Method Linear Imager
    Decoding Capabilities Standard 1D & GS1 DataBar Stacked Codes
    Mobility/Range Bluetooth v2.0 Class 2 (2.4 GHz)
    30.0 m / 98.4 ft (Open Air)
    Optional Batch Mode Yes, Batch Mode Compatible when out of range. Stores up to 1,200 barcodes
    Battery Lithium-Ion, 2100 mAh
    Operating Time 33,000 Scans per Charge
    Recharge Time 4 Hours
    Scan Rate (Maximum) 325 reads/sec.
    Reading Angle Pitch: +/- 65°
    Tilt:: +/- 35°
    Skew: +/- 65°
    Print Contrast (Min.) 15%
    Typical Depth of Field 5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
    7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
    10 mils:2 .0 to 45.0 cm / 0.8 to 17.7 in
    13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
    20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in
    Indicators Scanner:
    Beeper (Adjustable Tone and Volume)
    Datalogic Green Spot Good Read Feedback
    Good Read LED

    Cradle
    Indicator LED: Battery Charging (Red), Charge Completed (Green), Power/Data (Yellow)
    Auto Sense Mode Yes, In Cradle
    Operating Temperature 0 to 50 °C / 32 to 122 °F
    Drop Specification Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
    Environmental Sealing IP52
    Ambient Light (Max) 0 - 100,000 lux
    Stand Yes, As Charging Base
    Warranty 3 Year Manufacturer Warranty

    DataLogic Gryphon I GBT4100 Reviews

    POSGuys Rating:

    Customer Reviews

    Accessories

    Gryphon I GBT4100 Charging/Communications Cradle, White with RS-232/IBM46xx/USB Interface Support
    Universal Power Power Supply (AC/DC, PG12-10P55, requires line cord 90ACC1886)

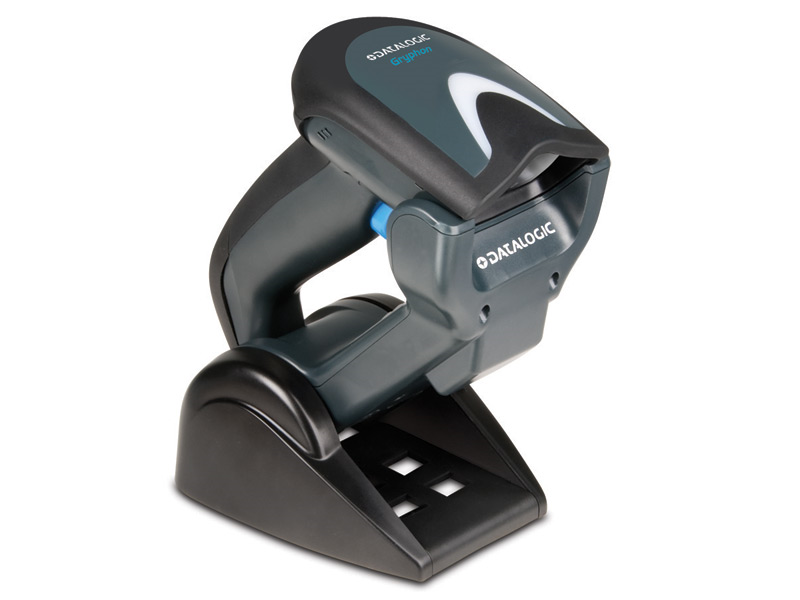

    Gryphon I GBT4400 Base Station/Charger, Black, Supports Multiple (RS-232/USB/Keyboard Wedge) Interfaces, Choose Cable From Accessories
