PrehKeyTec PC Commander POS System

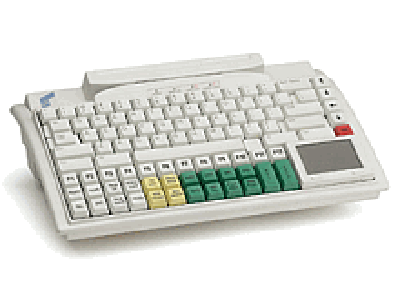

The pictures shown are general images for product PC Commander POS System and may not be applicable to all part numbers
PC Commander POS System Discontinued
The PrehKeyTec PC Commander POS System has reached end of life.
This modular POS system is extremely compact and consists of a programmable Preh keyboard, a motherboard with Pentium™ processor, a hard disk and PCMCIA-slots.
External Power Supply 15V/2.5 A
Ports: - 4 serial - 1 parallel - 2 USB - 1 SVGA - 1 RJ-11 (cash drawer) - 1 PS/2 mouse port - 1 power supply connector
PCMCIA slot for 2 PC Cards (Type 1, Type 2) or 1 PC Card Type 3
MC 128 W/X keyboard, menu driven programmability, with magnetic stripe reader and daisy chain socket. Optional barcode electronics, LC Display and keylock.
32 MB DRAM on SO-DIMM port, max 128 MB
512 KB Level 2 Cache
Standard Bios with 100% SVGA compatibility, power management and remote fax power-up.
SVGA-GUI Controller to PCI Bus - 640x480, 16 Million Colors - 1024x768, 64K Colors - 1280x1024, 256 Colors
Standard SVGA monitor connection via 15 pin HD sub
CD-ROM Connection via Parallel port
Speaker
Cooling fan
External Power Supply 15V/2.5 A
Ports: - 4 serial - 1 parallel - 2 USB - 1 SVGA - 1 RJ-11 (cash drawer) - 1 PS/2 mouse port - 1 power supply connector
PCMCIA slot for 2 PC Cards (Type 1, Type 2) or 1 PC Card Type 3
MC 128 W/X keyboard, menu driven programmability, with magnetic stripe reader and daisy chain socket. Optional barcode electronics, LC Display and keylock.
32 MB DRAM on SO-DIMM port, max 128 MB
512 KB Level 2 Cache
Standard Bios with 100% SVGA compatibility, power management and remote fax power-up.
SVGA-GUI Controller to PCI Bus - 640x480, 16 Million Colors - 1024x768, 64K Colors - 1280x1024, 256 Colors
Standard SVGA monitor connection via 15 pin HD sub
CD-ROM Connection via Parallel port
Speaker
Cooling fan
