CognitiveTPG EZ-LP

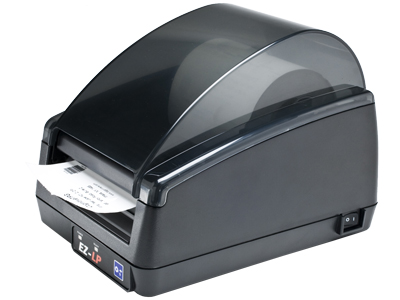

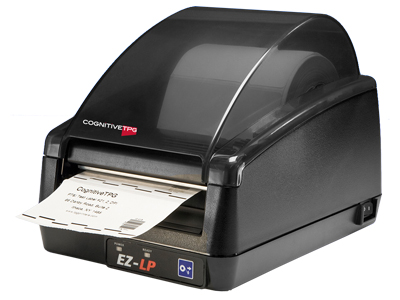

The pictures shown are general images for product EZ-LP and may not be applicable to all part numbers
EZ-LP Barcode Printers
The CognitiveTPG EZ-LP has reached end of life.
The CognitiveTPG EZ-LP barcode printer is designed for maximum compatibility, making it a drop-in desktop label printing solution for any location. The 4" maximum print width and 5" per second print speed give the EZ-LP the means to succeed in low to medium volume labeling operations, including retail, logistics, and healthcare. Full compatibility with ZPL and EPL desktop applications, as well as the Zebra LP2844 print driver makes the EZ-LP an excellent choice for legacy hardware upgrades as well as new installations.
Features
USB Interface Standard, with optional Serial, Parallel, or Ethernet Interfaces
Compatible with both Cognitive and Zebra-brand Direct Thermal Labels and Tags
Optional
Direct Thermal print mechanism
8 MB RAM, 4 MB Flash
Buy Cognitive TPG direct thermal barcode labels for your Cognitive TPG EZ-LP barcode printer.
Product Specifications | |
---|---|
Color Options | Black |
Interface | USB, serial, parallel, Ethernet |
Print Speed | 127 mm / second (5 ips) |
Print Method | Direct thermal |
Print Resolution | 203 dpi / 8 dots per mm |
Maximum Print Area | Width: 4.1 in (104 mm) Length: 322 in (8,179 mm) |
Paper Dimensions | 2 to 4.25 in (50 -108 mm ) Roll Diameter: 5 in (127 mm) |
Resident Fonts | EcPL: 5 bitmapped fonts, up to 8x magnication ZcPL: 15 bitmapped fonts, one scaleable font |
Barcodes Supported | EcPl: Code39, Code39 with check digit, Code93, Code128 Auto A/B/C, Codabar, EAN8, EAN8 with 2/5 digit add-on, EAN13, EAN13 with 2/5 digit add-on, Interleaved 2 of 5, Postnet, UCC/EAN 128, UPC A, UPC A with 2 digit add-on, UPC E, UPC E with 2/5 digit add-on, Aztec, DataMatrix, MaxiCode, PDF417 |
Barcodes Continued | ZcPL: Code 11, Interleaved 2 of 5, Code 39, Planet Code, PDF417, EAN-8, UPC-E, Code 93, Code 128 (Subsets A,B,and C), UPS MaxiCode, EAN-13, Micro-PDF417, Industrial 2 of 5, Standard 2 of 5, ANSI Codabar, LOGMARS, MSI, Aztec, Plessey, QR Code, RSS, UPC/EAN Extensions, UPC-A, Data Matrix, Bar Code Field Default, POSTNET |
Graphics Printing | Ability to upload and recall. PCX and BMP formats |
Memory | 4 MB Flash, 8 MB RAM |
Emulation | Eltron™, Zebra™ |
Printer Languages | ZcPL, EcPL |
Two Color Printing Capabilities | No |
Auto Cutter | No |
Peeler / Presenter | Optional label dispenser |
Internal Rewind | No |
LCD Display | No |
Weight | 3.9 lb (1.77 kg) |
Dimensions | 6.85W x 6.9H x 9.7D in (174 x 175 x 246 mm) |
Wall Mountable | No |
Operating Temperature | 41°F - 104°F (5°C - 40°C) |
Software Included | Cognitive Administrative Utility and Windows driver |
In The Box | Printer, quick start guide, auto ranging power supply, power cord, snap-on Ferrite bead (Optional - only with parallel configuration printers) |
