Opticon C37

The pictures shown are general images for product C37 and may not be applicable to all part numbers

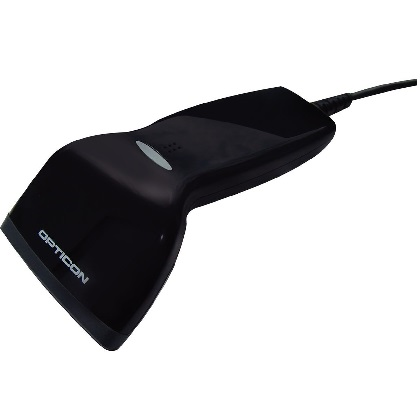

C37 Barcode Scanner


The Opticon C37 contact barcode scanner is a lightweight and durable unit, ideal for low volume retail or contact scanning. The C37 can read barcodes from contact to about half an inch away, and at a speed of up to 200 reads per second. For ease of use, the C37 can be set to automatically read any 1D barcodes in front of it.

Features
• 200 scan/sec scanning speed
• IP42 Seal keeps out dirt & water splashes
Product Specifications
Dimensions 2.09w x 2.95h x 5.91d in
Weight 3.2 oz (excluding cable)
Color Options Black,White
Interfaces Available RS232, Keyboard Wedge, USB
Scan Method CCD linear Sensor 2500 Pixels
Decoding Capabilities Standard 1D Barcodes
Scan Rate (Maximum) 200 scans/sec
Reading Angle -25 to 0°, 0 to +25°
Typical Depth of Field At PCS 0.9, Code 39: 0 - 0.59 in
Indicators 1 LED (red/green/orange), Buzzer
Drop Specification 5 ft drop onto concrete surface
Operating Temperature 0 to 50 °C / 32 to 122 °F
Environmental Sealing IP42
Ambient Light (Max) Fluoresecent 10,000 lx max
Incandescent 10,000 lx max
Warranty 2 Year
