Honeywell 3820

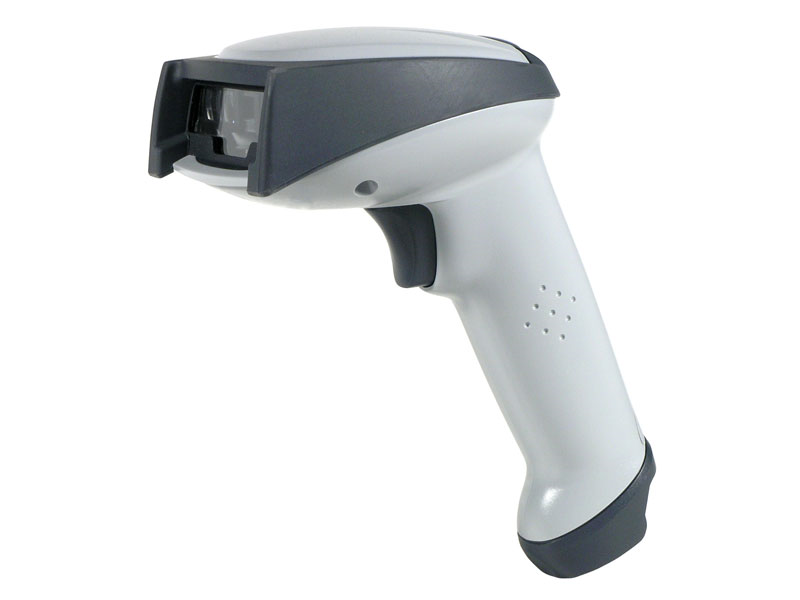

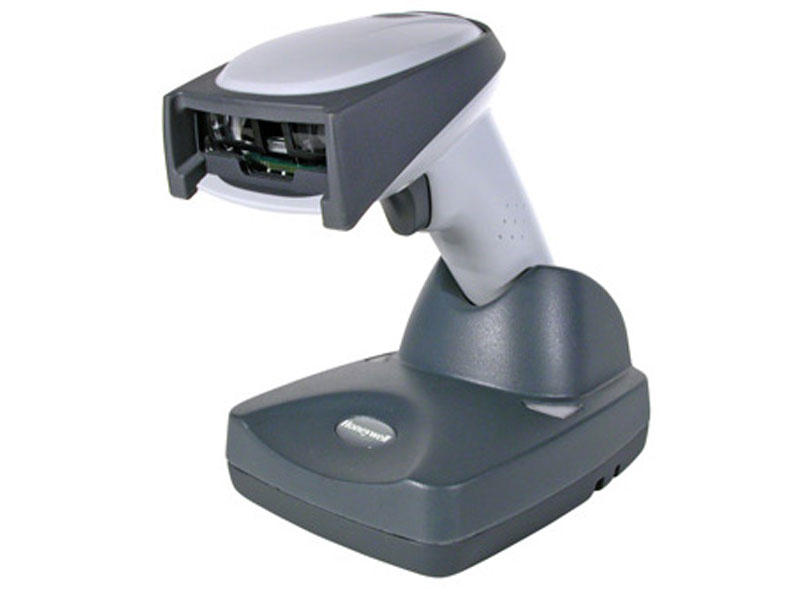

The pictures shown are general images for product 3820 and may not be applicable to all part numbers
3820 Industrial Barcode Scanner
The Honeywell 3820 has reached end of life. It has been replaced by the Honeywell Granit 1911i.
This product replaces the older Opticon OPR3101.
The Honeywell 3820 Cordless Barcode Scanner is an ideal choice for retail and light industrial environments where freedom of movement is vital. The incredibly aggressive adaptus 5.0 technology means the 3820 can read almost any 1D barcode placed before it, including damaged, worn, and otherwise unreadable barcodes. BlueTooth 1.2 technology gives you a 33' radio range, excellent for retail environments where moving to the product is far easier than moving the product itself.
Features 24" optimal scan range
Can scan up to 57,000 times on a single charge
270 scans per second scan rate
IP41 Seal to protect it from dust and water
Features
Product Specifications | |
---|---|
Dimensions | Scanner: 6.5 x 3.2 x 6.2 in Cradle: 5.5 x 4.3 x 3.2 in |
Weight | Scanner: 9.2 oz Cradle: 8.8 oz |
Color Options | Grey |
Interfaces Available | USB PS/2 Bluetooth |
Scan Method | Wireless Linear Imager |
Decoding Capabilities | Reads standard 1D and GS1 Databar symbologies. |
Mobility/Range | Bluetooth v2.0 Class 2 (2.4 to 2.5 GHz (ISM Band) Frequency) 10 m (33’) line of sight |
Battery | 1800 mAh Li-ion |
Operating Temperature | Up to 57,000 scans per charge (16 Hours) |
Recharge Time | 4 Hours |
Scan Rate (Maximum) | 270 scans per second |
Motion Tolerance | 5 cm/s (2 in/s) with 13 mil UPC at optimal focus |
Reading Angle | Pitch: 65° Skew: 65° |
Print Contrast (Min.) | 20% minimum reflectance difference |
Typical Depth of Field | 7.5 mil:102 mm - 356 mm (4.0 - 14") 10 mil: 51 mm - 457 mm (2.0 - 18") 13 mil: 25 mm - 610 mm (1.0 - 24") 20 mil: 25 mm - 914 mm (1.0½ - 36½) |
Indicators | Beep |
Auto Sense Mode | Yes, In Stand |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Drop Specification | Scanner: Designed to withstand 1.8 m (6’) drops Cradle: Designed to withstand 1.0 m (3.3) drops |
Environmental Sealing | Scanner: IP41 Cradle: Sealed to resist airborne particulate contaminants |
Ambient Light (Max) | 70,000 Lux |
Stand | Charging Cradle |
Warranty | 3 year factory warranty (Note: battery warranty is 1 year) |
