Infinite Peripherals Linea Pro

The pictures shown are general images for product Linea Pro and may not be applicable to all part numbers

Linea Pro Mobile Barcode Scanner



LINEA PRO 7 - Infinite Peripherals Linea Pro 7 is designed to work with iPhone SE3 (3rd Gen.), iPhone 7 & iPhone 8 and is compatible with iPhone 6/6s.

The new enhanced design, high performance scan engines, replaceable battery, additional scan button and USB Type-C connection make Linea Pro 7 the most advanced and powerful iOS barcode scanner and the perfect point-of-sale and tracking solution.

There are two types of scanners: 1D laser engine (Opticon) which reads 1D barcodes, and 2D imager Zebra SE4750 scan engine which reads both 1D and 2D barcodes.

The following extra features are also available: Bluetooth, RFID, Encrypted Head.

Linea Pro, bespoke made for iOS devices including Apple’s latest smartphone and tablet versions, has provided total mobility to barcode scanning and card reading, as well as automatic and real-time data gathering and communication thanks to its wireless Bluetooth and RFID capabilities (depending on the model). Its ergonomic design and light weight make it the ideal POS/reader solution wherever manoeuvrability is necessary. Its high-technology features and efficiency make it suitable for use in multiple fields. In addition, there are several accessories that enhance Linea Pro 7’s portability and performance, including rugged protective cases and charging stations. All the scanners are compatible with over 100 fully-functioning iOS Apps that can be found on the Apple Store, and a SDK is available to allow the development and integration of new and existing Apps.

Features - LINEA PRO 7
  • Scan - Read all the most widely used barcodes in business today

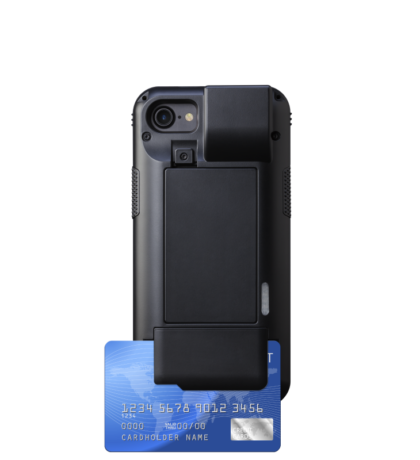

  • Swipe - Conveniently and securely run cards through the 3-track magstripe reader now placed at the bottom to enhance ergonomics
  • RFID - Contactless card reading with support for Mifare classic, Mifare ultra-light & Tag-it®
  • Enhanced assembly and battery
  • Usb type-c connection
  • Additional scan buttons - Easier to use in either hand
  • Over 100 compatible iOS apps
  • Develop - Full SDK available for the iOS platform


INFINEA TAB M - Designed for the Apple® iPhone SE, iPhone 7 & iPhone 8 and compatible with iPhone 6/6s

Designed for iPad mini, iPad Air and their subsequent versions (iPad mini 2, iPad mini 3, iPad mini 4, iPad mini 5, iPad Air 2, iPad Air 10.5″,), iPad Pro 9.7″, iPad 9.7 (5th/6th Gen.), iPad 10.2 (7th/8th/9th Gen.) and iPhone 6/6s/7/8 Plus, the Infinite Peripherals Infinea Tab M range converts these iOS mobile devices into powerful point-of-sale and scanning solutions, as it is a combination of barcode scanner and magnetic card reader. It connects through Apple’s Lightning Connector.

The Infinea Tab M comes with a 2D image sensor which reads the most widely used 1D and 2D barcodes (including QR codes). Besides the scan engine, one or more of the following capabilities are also available: Bluetooth, RFID reader, NFC reader, Encrypted Head (as opposed to non-encrypted) and PCI compliance (as set out by the Payment Card Industry to ensure secure transactions). Some versions are only card readers without scanner. All of these model combinations are available on Lineapro.store, please browse the categories below to find the one that best suits your needs. Additionally, there are several accessories available that enhance the Infinea Tab range, including rugged cases, hand grips and mounts.

All the scanners are compatible with over 100 fully-functioning iOS Apps that can be found on the Apple Store, and a SDK is available to allow the development and integration of new and existing Apps.

Features - INFINEA TAB M
  • Scan - Read all the most widely used barcodes in business today
  • Swipe - Conveniently and securely run cards through the 3-track magstripe reader
  • RFID/NFC - Contactless card reading with support for Mifare classic, Mifare ultra-light & Tag-it®
  • Over 100 compatible iOS apps
  • Develop - Full SDK available for the iOS platform
Product Specifications
Compatibility Linea Pro 7 Scanners
  • iPhone SE (2020), iPhone 7, iPhone 8, and iPhone 6/6S
    Infinea Tab M Scanners
  • iPad mini, iPad mini 2, iPad mini 3, iPad mini 4, iPad Air, iPad Air 2, iPad Pro (9.7") iPad 2017 (5th Gen) / iPad 2018 (6th Gen)
  • Power Supply Linea Pro 7 Scanners
  • 5V through USB C-Type or Station charger
    Infinea Tab M Scanners
  • DC 5V through mini USB
  • DC 5V through Single or 5 stations charger
  • Magnetic Stripe Reader Linea Pro 7 Scanners
  • 3-track bidirectional reading capabilities
  • Type: ISO 7810, 7811, 7813
    Infinea Tab M Scanners
  • 3-track bidirectional reading capabilities
  • Type: ISO 7816-1/2/3 compatible & RAW mode
  • Barcode Scanner Linea Pro 7 Scanners
  • Zebra SE4750SR / SE4750MR 2D
    Infinea Tab M Scanners
  • Opticon MDI3100 - image sensor 752x480 CMOS
  • Bluetooth (optional) Linea Pro 7 Scanners
  • Bluetooth 3.0 compatible - Class 2 - Serial Port Profile (SPP) - iAP
    Infinea Tab M Scanners
  • Bluetooth 2.0 Class 2, Distance - up to 10m, Serial port profile (SPP)
  • LEDs Linea Pro 7 Scanners
  • 4 LEDs for battery status
    Infinea Tab M Scanners
  • Green LED for battery
  • Blue LED for device status
  • Four LEDs for contactless indication
  • Buttons Linea Pro 7 Scanners
  • Scanning button
  • Battery status button
    Infinea Tab M Scanners
  • Scan and status buttons
  • Battery Linea Pro 7 Scanners
  • 2400mAh battery (16,850 Scans over approx. 26hrs of use)
    Infinea Tab M Scanners
  • Rechargeable Li-ion Battery 3,7V 1300mAh
  • Charging from USB port or Single/Gang Charger
  • Cables Linea Pro 7 Scanners
  • USB Type-C for device charge and sync
    Infinea Tab M Scanners
  • Standard USB A to mini B cable
  • Audio Indicator Electromagnetic Buzzer
    Communications Infinea Tab M Scanners
  • USB Interface - between Infinea Tab Mini and iOS device
  • USB Synchronization between iOS device & PC
  • External RS
  • Operating Environment Linea Pro 7 Scanners
  • Operating temperature: 0°C to +40°C
  • Operating humidity: 35 to 85% RH
  • Storage temperature: -5°C to +40°C
  • Storage humidity: 10 to 90% RH
  • Dimensions Linea Pro 7 Scanners
  • 157 mm x 77 mm x 26 mm (6.2in x 3 in x 1 in)
    Infinea Tab M Scanners
  • 103mm x 88mm x 23.5mm
  • Weight Linea Pro 7 Scanners
  • 175g (6.62 oz.) without iOS device
    Infinea Tab M Scanners
  • 140g with battery and 2D barcode reader (without device)
  • Software Support SDK for iOS platform
    Certifications CE, FCC, Apple Mfi, Optional PCI Compliance (PCI PTS 3.x SRED)
    Magnetic Stripe Reader 3-track bidirectional reading capabilities
    Type: ISO 7816-1/2/3 compatible & RAW mode
    PCI PTS 3.x SRED compliant
    DUKPT and Fixed Key Management
    3DES-112, AES-256 encryption algorithms
    Barcode Scanner 1D Laser or 2D high speed imager
    LEDs 4 LEDs for battery status
    Battery Rechargeable Li-ion Battery 3.7V 1300mAh, charging from USB port or Single/Gang Charger
    Audio Indicator Electromagnetic Buzzer
    Weight 4oz - without iOS device
    Dimensions 1D Scanner: 5.6in x 2.7in x .86in
    2D Scanner: 5.6in x 2.7in x 1in
    Operating Temperature 32°F to +40°C 0°C to +40°C
    Cables Standard USB A to mini B cable
    Communications USB Interface – between Linea Pro 5 and iPhone 5
    USB Synchronization between iPhone 5 and PC
    Button 1 Scanning Button
    Certifications PCI PTS 3.x SRED compliant
    DUKPT and Fixed Key Management
    3DES-112, AES-128, AES-256 encryption algorithms
    Software Support SDK for iOS platform
