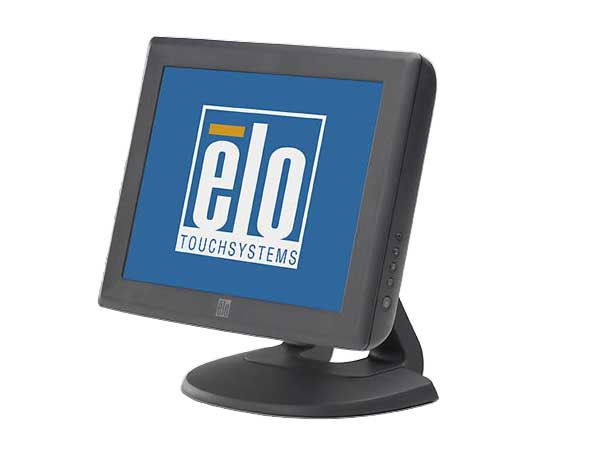

Elo TouchSystems 1215L
The pictures shown are general images for product 1215L and may not be applicable to all part numbers
1215L POS Touch Screen Monitor
The Elo TouchSystems 1215L has reached end of life. It has been replaced by the Elo TouchSystems 1515L.
The economical and space-saving 1215L 12 inch touch monitor features a choice of touch technologies and spill resistant sealing. It is available with AccuTouch five-wire resistive technology activated by fingernails, gloves, credit cards or stylus, IntelliTouch Surface Wave Technology activated by finger only, or Surface Capacitive Technology activated by finger only with superior scratch resistance. The 1215L touchscreen comes with a dual serial/USB interface, internal power supply and removable base.
Elo monitors are renowned for maintaining the highest level of quality and are a mainstay in the monitor industry. The 1215L 12 inch touch monitor is a reliable, space saving addition to any point-of-sale (POS), point-of-service, loyalty system, kiosk information system (KIS), interactive advertising display or guest check in application.
Entry-level monitor with Elo quality
Stable tilt base
Long lifespan
Sealed touchscreen
Antiglare Surface Treatment
Dual serial/USB interface
Removable base and VESA mounting option
Mounting holes on base bottom for tabletop security
Controls on the side rather than the front, plus lockout function for public use
3 year warranty
Similar models include the 1715L 15 inch touch monitor and the 1515L 15 inch touch monitor.
Elo monitors are renowned for maintaining the highest level of quality and are a mainstay in the monitor industry. The 1215L 12 inch touch monitor is a reliable, space saving addition to any point-of-sale (POS), point-of-service, loyalty system, kiosk information system (KIS), interactive advertising display or guest check in application.
Features
Similar models include the 1715L 15 inch touch monitor and the 1515L 15 inch touch monitor.
Product Specifications | |
---|---|
Display Type | 12 Inch TFT Active Matrix LCD |
Color Options | Dark Grey |
Interface | Serial or USB |
Style | Desktop - Stable Tilt Base |
Optimal Resolution | 800 x 600 at 56, 60, 70 or 75 Hz |
Aspect Ratio | 4:3 |
Contrast Ratio | 500:1 (typical) |
Brightness | LCD panel: 200 nits - with AccuTouch: 164 nits - with IntelliTouch: 184 nits - with surface capacitive: 170 nits (typical) |
Colors | 16.2 million with dithering |
Weight | 7.92 lb (3.59 kg) |
Dimensions | 11.86 (w) x 11.26 (d) x 6.61 (h) in. |
Mounting Options | Removable base reveals VESA 75mm x 75mm mount |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Power Supply | Internal, with jack to accept power from optional external brick |
Monitor Input Voltage | AC input (line) voltage: 85-265 VAC, 47-63 Hz - DC input (line) voltage: 12.0 VDC ±0.75V |
Power Dissipation | 16 W typical - 20 W max |
Warranty | 3 Years |
Elo TouchSystems 1215L Reviews
Not every application needs a large screen, if you're running out of counter space this is the obvious solution for you! It's a great space saving touch monitor but still built with Elo's industry leading hardware.
