Elo TouchSystems 1515L

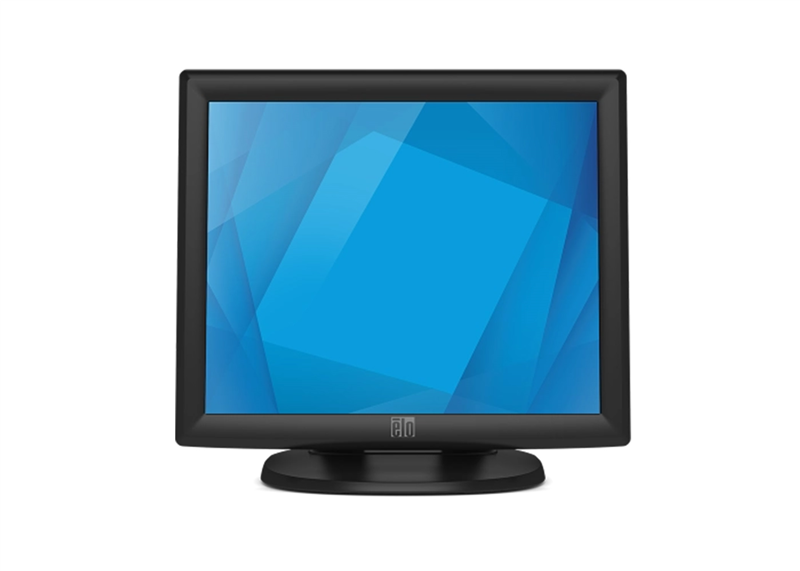

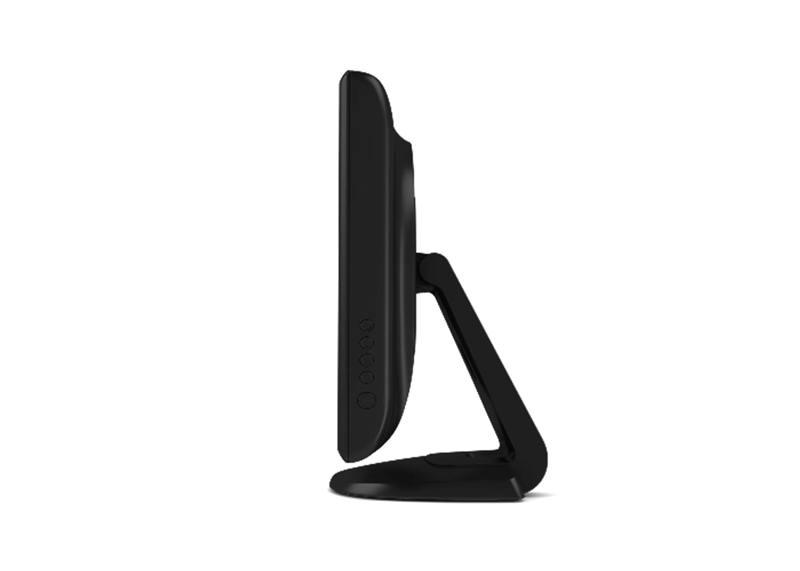

The pictures shown are general images for product 1515L and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
1515L Features
Splash Proof
4:3 Ratio
MSR Support
Resistive
Capacitive
Color Options

Dark Grey or Beige

1515L POS Touch Screen Monitor


The Elo TouchSystems 1515L is nearing end of life. It will soon be replaced by the Elo TouchSystems 1517L.

This product replaces the older Elo TouchSystems 1215L.

Elo touch screen monitors are known for quality and are a mainstay in the touch monitor industry. The 1515L touch monitor is no exception and is a reliable addition to any POS, point-of-service, loyalty system, kiosk information system (KIS), interactive advertising display or guest check-in application.

The 1515L touch screen monitor is a cost-effective solution for customers with system integration needs. It combines the award winning, agency approved touch screen technology of Elo with intuitive monitor design and affordability. It supports multiple touch technologies including AccuTouch (Resistive), IntelliTouch (Capacitive) and Projected Capacitive (Multi-Touch). The 1515L optimal screen resolution is 1280 x 1024 but does allow for many variations. (See data sheet for details.)

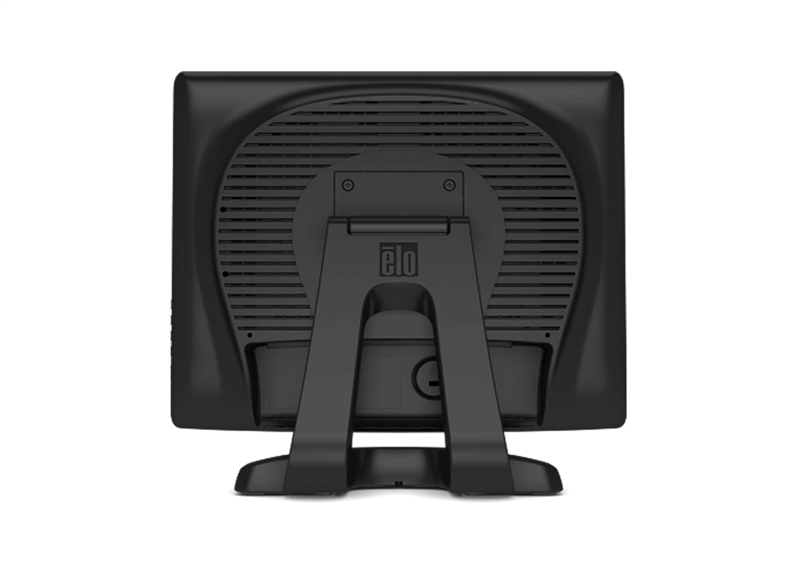

For extra security, the base of the 1515L sports mounting holes on the bottom and is removable, allowing for VESA pole mounting. The monitor interfaces with the computer by way of a dual serial or USB interface and is internally powered but also has a jack to accept power from an optional external power adapter.

Features

  • Dual serial/USB interface
  • Entry-level monitor with Elo quality
  • Long-lasting
  • Sealed touchscreen
  • Anti-glare surface treatment
  • "Designed for touch" features such as a stable tilt base
  • Removable base with VESA mounting option
  • Mounting holes on base for tabletop security
  • Controls on the side rather than the front, plus lockout function for publicly used monitors
  • A similar model is the Elo TouchSystems 1715L Touch Screen Monitor.

    Product Specifications
    Display Type 15 Inch TFT Active Matrix
    Color Options Dark Grey or Beige
    Interface Dual Serial/USB
    Style Desktop - Cable Management Base
    Optimal Resolution 1024 x 768
    Aspect Ratio 4:3
    Contrast Ratio 450:1 (typical)
    Brightness LCD panel: 250 nits - with AccuTouch 200 nits - with Acoustic Pulse Recognition: 230 nits - with IntelliTouch: 230 nits (typical)
    Colors 16.2 million
    Weight 10.6 lb
    Dimensions 13.8(W) x 12.2(H) x 6.9(D)
    Mounting Options Removable Base, 75 mm VESA Mount
    Operating Temperature 0°C to 40°C
    Power Supply Internal, with jack to accept power from optional external brick
    Monitor Input Voltage 100-240 VAC, 50/60 Hz
    Optional Input Voltage +12VDC ±5%
    Power Dissipation 30 W maximum
    Optional Peripherals 3 track magnetic strip reader (MSR)
    Power Drawn 30W (typical)
    Warranty 3 Year Monitor

    Elo TouchSystems 1515L Reviews

    POSGuys Rating:

    This model is very basic, and as such is a great starter touch screen monitor. We prefer the Resistive or Capacitive touch screen technologies. The Elo 1515l has many of the same features you'll find in the 1517l, but comes in over a pound heavier and slightly less static contrast ratio of 700 compared to 800 for the 1517l.

    Customer Reviews

    Frequestly Asked Questions

    Recommended Models

    1515L 15" AccuTouch LCD Touch Monitor, Dark Gray. ROHS Compliant. VGA(DB-15) for Video. Dual Serial & USB for Touch. 1024 x 768.
    Touch Type:Resistive (AccuTouch)
    1515L 15" LCD IntelliTouch Touch Monitor, Dark Gray. ROHS Compliant. ROHS Compliant. VGA(DB-15) for Video. Dual Serial & USB for Touch. 1024 x 768.
    Touch Type:SAW (IntelliTouch)
