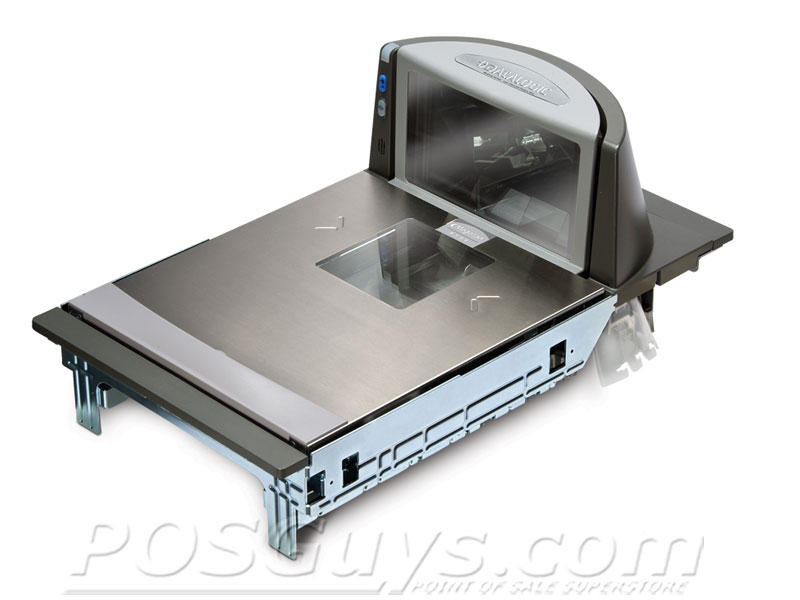

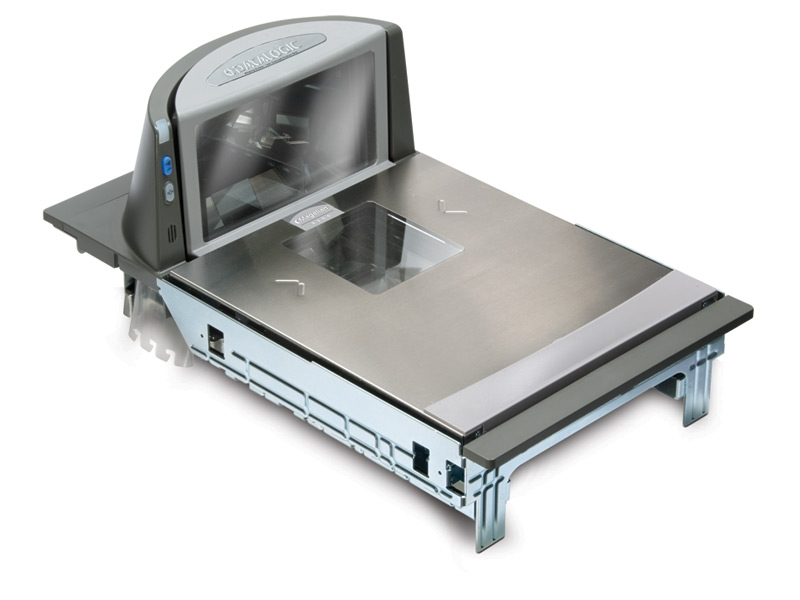

DataLogic Magellan 8300

The pictures shown are general images for product Magellan 8300 and may not be applicable to all part numbers

Magellan 8300 Presentation Barcode Scanners


The DataLogic Magellan 8300 has reached end of life. It has been replaced by the DataLogic Magellan 8400.

The Datalogic Magellan 8300 barcode scanner/ scale combination provides fast and accurate scanning in a variety of sizes, excellent for grocery or other high-volume retail environments. FirstStrike advanced decoding software combines with 5-Sided reading at 360° rotation, minimizing reorientation of products during scanning. The All-Weighs platter extends over the vertical scanning plane, allowing for larger products to be weighed with precision and ease. Available as a standalone barcode scanner or combination barcode scanner / scale, the Datalogic Magellan 8300 is an ideal solution for high-volume retail locations looking to increase efficiency and improve customer service.

Features

  • 3900 scanlines per second
  • 30 lb capacity with 0.01 lb increments
  • Optional EAS radios
  • USB or RS-232 Serial Interfaces in single or dual cable modes

    Click Here for Additional Warranty Information
  • Product Specifications
    Dimensions Length:
    8301 Short Scanner: 14.0 in (35.3 cm)
    8302 Medium Scanner: 15.8 in (39.9 cm)
    8303 Long Scanner: 20.0 in (50.8 cm)
    8304 Medium Scanner/Scale: 15.8 in (39.9 cm)
    8305 Long Scanner /Scale: 20.0 in (50.8 cm)

    All Models: 11.5 (29.2cm) W x 5.1 (131cm) H (Above Counter) x 4.1 (10.0cm) D (Below Counter)
    Color Options Grey
    Interfaces Available USB
    RS-232
    IBM4683
    Scan Method Omni Directional 5 Sided Laser Scanner
    Decoding Capabilities Standard 1D and GS1 DataBar Bar Codes
    Mobility/Range In-Counter
    Scan Rate (Maximum) 3,900 lines/sec.
    Reading Angle 360° 5 Sided Reading
    Scale Capacity 30.0 lb (15 kg)
    Scale Max Static Weight 150 lb (68 kg)
    Scale Minimum Legal Weight 0.01 lb (0.005 kg)
    Indicators Beeper (Adjustable Tone and Volume)
    Good Read LED
    Auto Sense Mode Yes
    Operating Temperature 10 to 40 °C / 50 to 104 °F
    Storage Temperature -40 to 70 °C / -40 to 158 °F
    Accessories Integrated Produce Lift Bar
    Produce Rail™
    Warranty 1 Year Manufacturer Warranty
