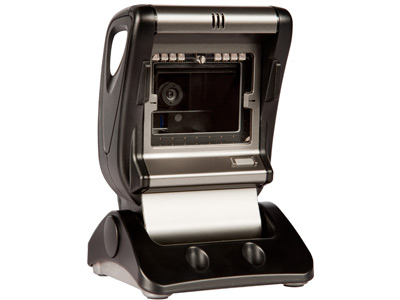

Opticon M5
The pictures shown are general images for product M5 and may not be applicable to all part numbers
M5 Presentation Barcode Scanners
The Opticon M5 has reached end of life. It has been replaced by the Honeywell Genesis.
The Opticon M5 barcode scanner adds 2D presentation scanning to your checkstands at a great price. The 2D imager reads standard UPC barcodes from up to 6" away at 50 fps, so you can be sure products are read every time. A tilting base on the M5 lets you aim the optimal scanning area, improving barcode scanning efficiency. For stubborn barcodes, simply pick up the M5 and use the trigger mode to get a better read.
The M5 is built to meet the needs and durability requirements of retail scanning while avoiding excesses that can drive up prices. A rugged design keeps out dust and prevents the odd water spill from damaging the barcode scanner. It also can survive drops of 5-feet to concrete, further extending the longevity of the scanner. If you need a fast retail 2D barcode scanner on a budget, the Opticon M5 is a great choice.
Features
• 50 fps scan rate
• Contact to 6.1" scan range for UPC barcodes
• Can read cell phone-based barcodes for mobile couponing
The M5 is built to meet the needs and durability requirements of retail scanning while avoiding excesses that can drive up prices. A rugged design keeps out dust and prevents the odd water spill from damaging the barcode scanner. It also can survive drops of 5-feet to concrete, further extending the longevity of the scanner. If you need a fast retail 2D barcode scanner on a budget, the Opticon M5 is a great choice.
Features
• 50 fps scan rate
• Contact to 6.1" scan range for UPC barcodes
• Can read cell phone-based barcodes for mobile couponing
| Product Specifications | |
|---|---|
| Dimensions | 90 x 139 x 96 mm / 3.54 x 5.47 x 3.78 in |
| Weight | 295 g / 10.4 oz (excl. cable) |
| Color Options | Black White |
| Interfaces Available | RS232 Keyboard Wedge USB |
| Scan Method | Omnidirectional Imager |
| Decoding Capabilities | Standard 1D & 2D Bar Codes |
| Mobility/Range | Corded |
| Scan Rate (Maximum) | Up to 50 fps |
| Reading Angle | Pitch: +/-55° Skew: +/-50° Roll: 360° |
| Typical Depth of Field | At *PDF417* and Code 39 or **Mobile Code**: *0 - 145 mm / 0 - 5.71 in (res. 0.254 mm / 10 mil)* *15 - 45 mm / 0.59 - 1.77 in (res. 0.127 mm / 5 mil)* 0 - 155 mm / 0 - 6.10 in (res. 0.33 mm / 13 mil) 0 - 140 mm / 0 - 5.51 in (res. 0.26 mm / 10 mil) 20 - 45 mm / 0.79 - 1.77 in (res. 0.127 mm / 5 mil) **0 - 40 mm / 0 - 1.57 in (320x240 pixels)** |
| Indicators | 2 LEDs (green/blue/orange) Buzzer |
| Auto Sense Mode | Yes |
| Image Capture | n/a |
| Mobile Phone Scanning Capabilites | Yes |
| Drivers License Data Parsing | No |
| Operating Temperature | 0 to 40 ºC / 32 to 104 ºF |
| Storage Temperature | -40 to 70 ºC / -4 to 140 ºF |
| Drop Specification | 1.5 m / 5 ft drop onto concrete surface |
| Environmental Sealing | IP 52 |
| Ambient Light (Max) | Fluorescent 10,000 lx max Direct sun 50,000 lx max Incandescent 10,000 lx max |
| Warranty | 1 Year Manufacturer |
