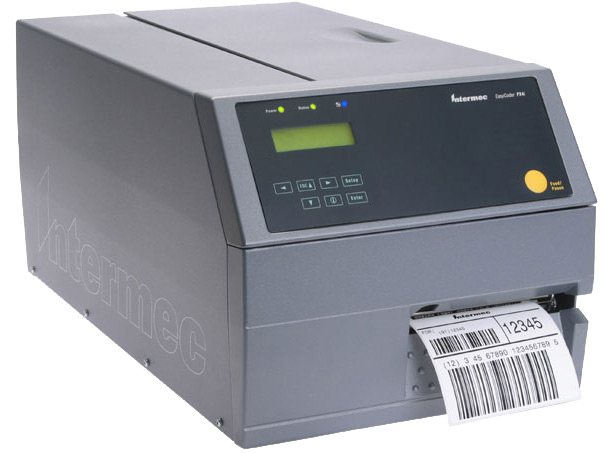

Intermec PX4i

The pictures shown are general images for product PX4i and may not be applicable to all part numbers

PX4i Barcode Printers


The Intermec PX4i has reached end of life. It has been replaced by the Honeywell PX940.

This product replaces the older Intermec PD41.

The Intermec PX4i series of barcode printers provides tremendous versatility and power for any large-scale labeling operation. The PX4i can be mounted in virtually any position, making it easy to integrate into manufacturing environments. 4" labels are printed at up to 12" per second, excellent for high-volume printing in assembly line, manufacturing, or production locations. A modular design allows for easy installation of printheads, peelers, and presenters, making the Intermec PX4i a great choice for any high-volume label printing.

Features
  • Printing language independent
  • RS-232 Serial, USB, Ethernet interfaces
  • 203, 300, or 400 dpi printheads available
  • 16 MB SDRAM; 4 MB Flash, upgradeable to 1GB Flash via Compact Flash Slot

    Please note there are no returns on printheads.
  • Product Specifications
    Color Options Grey
    Interface Ethernet, serial RS-232 (optional parallel IEEE1284, industrial interface, dual serial ports RS-232/422/485)
    Printer Method Direct thermal and thermal transfer
    Print Resolution 203 or 300 dpi
    Maximum Print Area Width: 6.59 in (167.4 mm)
    Length: 161 in (4095 mm) at 203 dpi, 109 in (2775 mm) at 300 dpi, 40 in (1016 mm) at 406 dpi
    Paper Dimensions Width: 6.69 in (170 mm)
    Roll Diameter: 3.15 in (80 mm)
    Resident Fonts Scalable fonts including CP1252 Font cache for maximum performance Non-Latin fonts and legacy fonts available
    Barcodes Supported UPC/EAN Shipping Container; UCC/EAN 128 Serial Shipping Container; MH10.8 Shipping Label; AIAG (shipping parts label); OGMARS; POSTNET; HIBCC; ISBT 128; GM1724; UPS shipping label; Global Transport label
    Graphics Printing Supports PCX file format. (Fingerprint Only) Other graphic formats supported with Label Generation Tools
    Memory 16MB Flash memory, 32MB SDRAM, 1 Compact Flash slot
    Emulation Zebra, Datamax
    Printer Languages IPL, ZSim, DSim, XML enabled for SAP­­ All and Oracle WMS, fingerprint/direct protocol
    Two Color Printing Capabilities No
    Auto Cutter Optional
    Peeler / Presenter integral self-strip unit with liner takeup
    Internal Rewind No
    LCD Display Yes
    Weight 32.6 lb (14.8 kg)
    Dimensions 482 x 238 x335 mm (19.0 x 9.4 x 13.2 in)
    Operating Temperature 41°F - 104°F (5°C - 40°C)
    Software Included InterDriver™ Windows printer driver, Intermec label design and print package, PrintSet for printer configuration
