Sato CL608e/CL612e

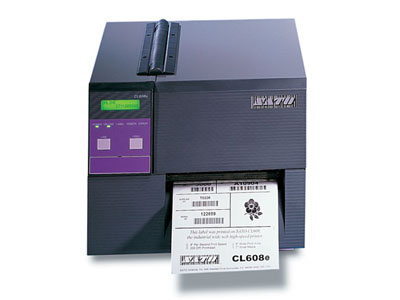

The pictures shown are general images for product CL608e/CL612e and may not be applicable to all part numbers
CL608e/CL612e Barcode Printers
The Sato CL608e/CL612e has reached end of life. It has been replaced by the Sato CL6NX Plus.
This product replaces the older Sato CL408e/CL412e.
For advanced technology and high-speed performance, the CLe Series printers have no match in the industry. Built in the tradition of SATO's rugged dependability, the CLe Series printers are based on RISC processors, delivering high-quality images at high speeds.
Features: Direct/Thermal Transfer, 6"/6.5" Print Width, 2" to 7" Media Width, 8 ips Print Speed, 203 or 305 dpi Resolution.
These printers do not ship with labels. Labels can be ordered here.
Features: Direct/Thermal Transfer, 6"/6.5" Print Width, 2" to 7" Media Width, 8 ips Print Speed, 203 or 305 dpi Resolution.
These printers do not ship with labels. Labels can be ordered here.
Product Specifications | |
---|---|
Color Options | Grey |
Interface | Serial, parallel IEEE1284, ethernet, wireless 802.11b (incl. WPCPlus), twinax/coax, RS422/485, USB adapter |
Print Method | Direct thermal or thermal transfer |
Print Speed | CL608e and CL612e: 8 in / second (200 mm / second) |
Print Resolution | CL608e: 203 dpi CL612e: 305 dpi |
Maximum Print Area | CL608e Width: 6 in (152 mm) Length: 49.2 in (1249 mm) CL612e Width: 6.5 in (164 mm) Length: 32.8 in (833 mm) |
Paper Dimensions | CL608e Width: 6 in (152 mm) Roll Diameter: 8.6 in (218 mm) CL612e Width: 6.5 in (164 mm) Roll Diameter: 8.6 in(218 mm) |
Paper Thickness | 0.01 in maximum (0.25 mm) |
Resident Fonts | Bitmap: 12 proportional, mono-spaced and outline fonts (Code table 858). Scalable Internal CG Triumvirate® & CG Times® fonts. Optional Downloaded TrueType® fonts, scalable from 8 to 72 points - 360° rotation of barcodes and text, charac- ter expansion horizontally and vertically, sequential numbering, form overlay for high speed editing of complex formats. |
Barcodes Supported | Linear: UPC-A, UPC-E, EAN-8, EAN- 13, Code 39, Code 93, Code 128, Codabar, MSI, Bookland, Industrial 2/5, Interleaved 2/5, Matrix 2/5, Postnet, UCC/EAN 128, RSS, Composite 2D: PDF417, Micro PDF417, Truncated PDF417, Maxicode, Data Matrix, QR Code |
Graphics Printing | Printing and storage of PCX, BMP, SATO Hex/binary |
Memory | 2 MB Flash, 16 MB SRAM |
Two Color Printing Capabilities | No |
Auto Cutter | Optional |
Peeler / Presenter | Optional |
Internal Rewind | Optional |
LCD Display | Yes |
Weight | 41.9 lb (19 kg) |
Dimensions | 13.8W x 16.9D x 11.7H in (352 x 430 x 298 mm) |
Software Included | Windows drivers (95, 68, ME, NT4.0, 2000, XP), label software printer utilities |
