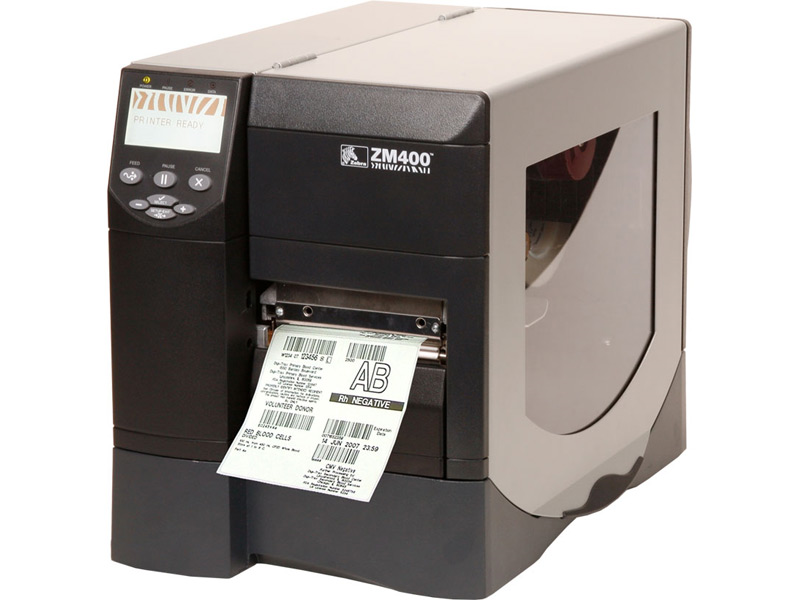

Zebra ZM400
The pictures shown are general images for product ZM400 and may not be applicable to all part numbers
ZM400 Barcode Printers
The Zebra ZM400 has reached end of life. It has been replaced by the Zebra ZT400.
The Zebra ZM400 industrial barcode printer provides best-in-class performance for any large scale labeling operations. The printer can make 4" wide labels at up to 600 dpi, excellent for jobs requiring high quality labeling, such as health care or inventory control. With a top print speed of 10" per second, the Zebra ZM400 barcode printer will easily streamline your labeling operation. Interface cable not included.
Features RS-232 Serial, Parallel, USB, Ethernet, or Wireless Interfaces available
157" max print length
ZPL, ZPL II, EPL, XML compatible
Die-cast aluminum base, frame, and printhead mechanism
These printers do not ship with labels. Labels can be ordered here.
Features
These printers do not ship with labels. Labels can be ordered here.
Product Specifications | |
---|---|
Interface | RS-232 Serial, Parallel, USB, Ethernet, or Wireless |
Print Method | Direct thermal or thermal transfer |
Print Speed | 203 dpi: 10 in / second (254 mm / second) 300 dpi: 8 in / second (203 mm / second) 600 dpi: 4 in / second (102 mm) |
Print Resolution | Optional - 203 dpi, 300 dpi, or 600 dpi |
Maximum Print Area | Width: 4.09 in (104 mm) Length: 157 in (157 mm) at 203 dpi - 73 in (1,854 mm) at 300 dpi - 39 in (991 mm) at 600 dpi |
Paper Dimensions | Width: 4.5 in (114 mm) Roll Diameter: 8 in (203 mm) |
Paper Thickness | 0.0023 to 0.010 in (0.058 to 0.25 mm) |
Resident Fonts | 7 bitmapped, 1 smooth scalable, native open type font support, global Printing—Unicode™ compliant for fast multi-language, on demand thermal printing right out of the box, Contains UFST® from Monotype Imaging Inc. |
Graphics Printing | Supports user-defined fonts and graphics including custom logos, ZPL II drawing commands for boxes and lines |
Memory | 8 MB Flash, 16 MB DRAM - Optional factory installed 64 MB Flash |
Printer Languages | ZPL II, EPL™, XML-enabled printing, APL-I™, ZBI 2.0™ |
Two Color Printing Capabilities | No |
Auto Cutter | Optional - cutter with catch tray |
Peeler / Presenter | Optional - a front mount passive peel option with no liner take-up, liner take-up option available |
Internal Rewind | Optional |
LCD Display | 240 x 128 px display |
Weight | 32.4 lb (15 kg) |
Dimensions | 10.9W x 13.3H x 18.7D in (278 x 338 x 475 mm) |
Wall Mountable | No |
Operating Temperature | 32° to 104°F (0° to 40°C) |
