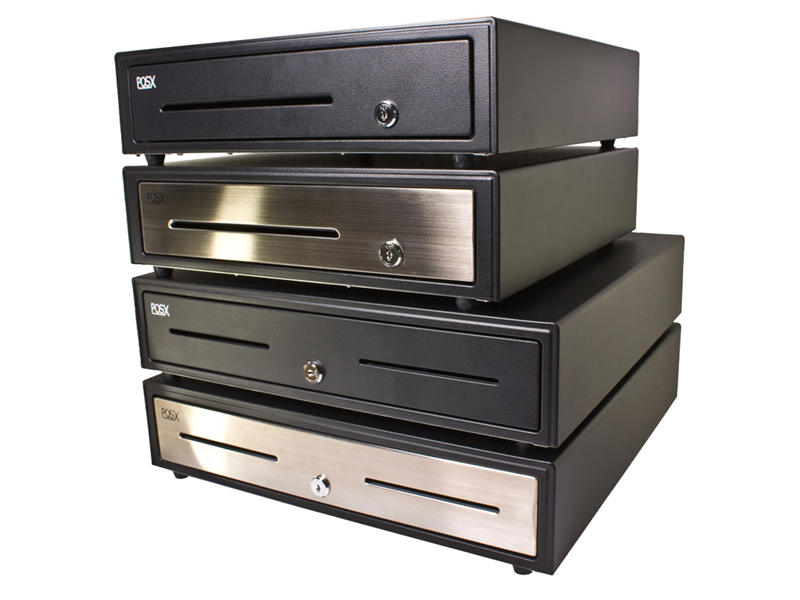

The POS-X EVO-CD1 cash drawer series is the third generation of drawers from POS-X and offers increased durability while maintaining an affordable price. Available as the 16.1" wide EVO-CD16 and the 18.1" wide EVO-CD18, these cash drawers fit most common installations. If counterspace is a premium, under counter mounting brackets are available.

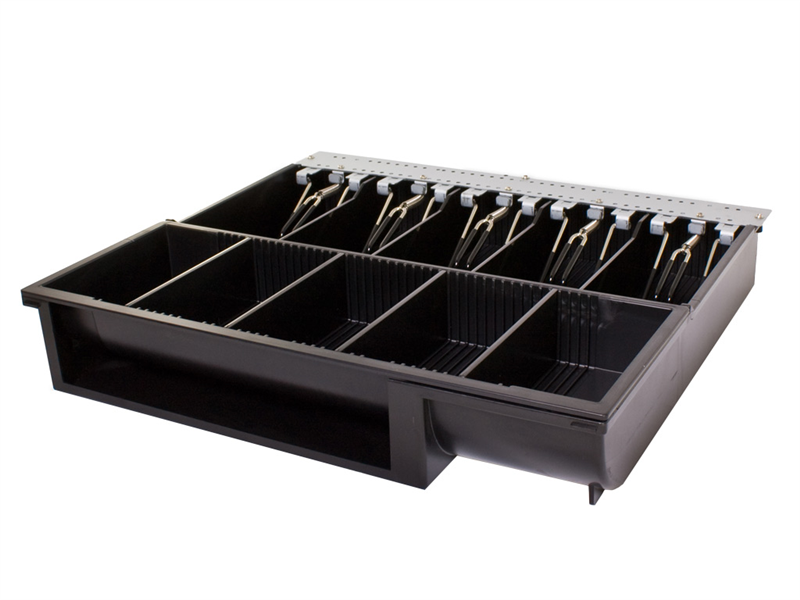

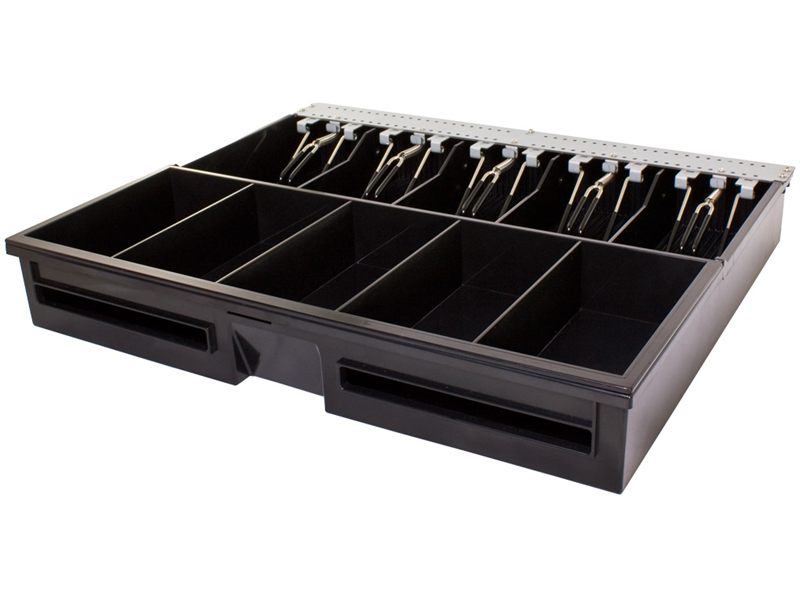

The EVO-CD tills have media containers built-in, meaning large bills, checks, or other important documents don't mill about on the bottom of the drawer. Optional till covers are built with heavy grade steel, locking securely to the till and covering the media slots. 5-bill and 5-coin slots in the till can be adjusted to meet your needs, providing added versatility. The EVO-CD offers both Canadian and US till configurations.
A reinforced steel body increases rigidity and improves resistance to tampering. The drawer is set on rails instead of rollers, increasing the life of the EVO-CD and giving you smooth operation every time. The EVO-CD series comes with a 3 year warranty standard, and POS-X offers overnight exchange service or warranty extensions if needed.
Features • Available with painted or stainless steel front
• Compatible with most receipt printers
• Shatter resistant till
• Till inserts can be adjusted as needed
• Solenoid rated at 1,000,000+ operations
Product Breakdown • EVO-CD16: 16.1" x 16.3" x 3.9", 17.2 lbs, 1 Media Slot
• EVO-CD18: 18.1" x 18.3" x 3.9", 20.3 lbs, 2 Medial Slots
Purchased: POS-X EVO-CD1 Cash Drawer Black 18.1w x 18.3d x 3.9h Body Painted Face Order Cable Separately (EVO-CD18B)
Liked: It worked with our current equipment
Additional Info: The price was cheaper, the customer service was more than excellent and shippment was in a very timely manner
Dimensions:
16.1" x 16.3" x 3.9" 18.1" x 18.3" x 3.9"
Weight:
17.2 lbs 20.3 lbs
Color Options:
Black
Drawer Front:
Powder Finish or Stainless Steel
Finish:
Textured Hybrid Coating
Media Slots:
1 or 2, based on dimensions
Till:
5 coin, 5 bill 6 coin, 6 bill
Rails:
Metal cash drawer roller
Lock:
3-Position Key Lock
Interface:
Printer-Driven USB (Via Adapter)
Life Cycle:
Over 1 Million Cycles
* These product specifications may not apply to every model available. Please see manufacturer product brochure for complete product specifications or call POSGuys at 800.903.6571
