Opticon CR2/LG2

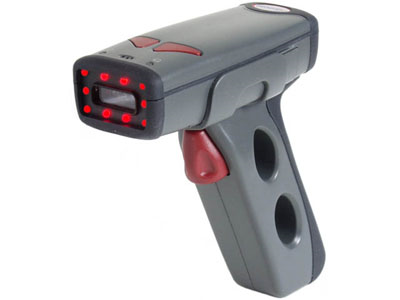

The pictures shown are general images for product CR2/LG2 and may not be applicable to all part numbers

CR2/LG2 Industrial Barcode Scanner


The Opticon CR2/LG2 has reached end of life. It has been replaced by the DataLogic PowerScan PD7100.

The CR2/LG2 is truly a revolutionary imager. Not only does it read all the common 2 dimensional and matrix barcodes, it also provides omni-directional reading of barcodes. Ranked with the fastest 2D imagers available, the CR2/LG2 is great at reading both small, very high-density symbols as well as reading barcodes at extended ranges. The cabled version functions like a traditional scanner. Removing the cable and adding a battery allows portable operation storing barcode data for later transmission. The handle is removeable for palm-held operation. Designed for rough handling yet lightweight enough for office or retail applications, the CR2/LG2 is built to last.
Product Specifications
Dimensions 109 x 46 x 130 mm (4.3 x 1.8 x 5.1 in)
Weight Cabled: 144 g (5.1 oz)
Non-Cabled: 190 g (6.8 oz)
Color Options Grey
Interfaces Available USB
RS232
Keyboard Wedge
Scan Method Omni Directional Imager
Decoding Capabilities Reads all common linear 1D and 2D Symbologies
Mobility/Range Corded
USB Cable Length: 6 ft
RS232 & PS/2 Cable Length: 8 ft
Reading Angle Pitch: ±60°
Roll: ± 180°
Skew ±60°
Print Contrast (Min.) 35%
Typical Depth of Field 5.8 mil (PDF417): 3 - 10.5"
Maxicode: 4 - 13"
12.5 mil (UPC A): 3 - 13"
7.5 mil (Code 128): 5 - 11"
Optional Batch Mode Yes, LS2 has ability to store 8 MB of data as wireless batch mode
Indicators Laser Guide
Beep
Auto Sense Mode n/a
Drivers License Data Parsing No
Image Capture Yes
Format: JPEG & BMP
Resolution: Up to 1024 x 640
Mobile Phone Scanning Capabilites No
Operating Temperature 0º to 40º C (32º to 104º F)
Storage Temperature -20º to 60º C (-4º to 140º F)
Drop Specification Withstands multiple drops to concrete of 2 m (6.6 ft)
Environmental Sealing
Ambient Light (Max)
Stand No
Warranty 2 Year
