Elf Mobile Computers


The DataLogic Elf has reached end of life. It has been replaced by the DataLogic Lynx.

This product replaces the older DataLogic Pegaso.

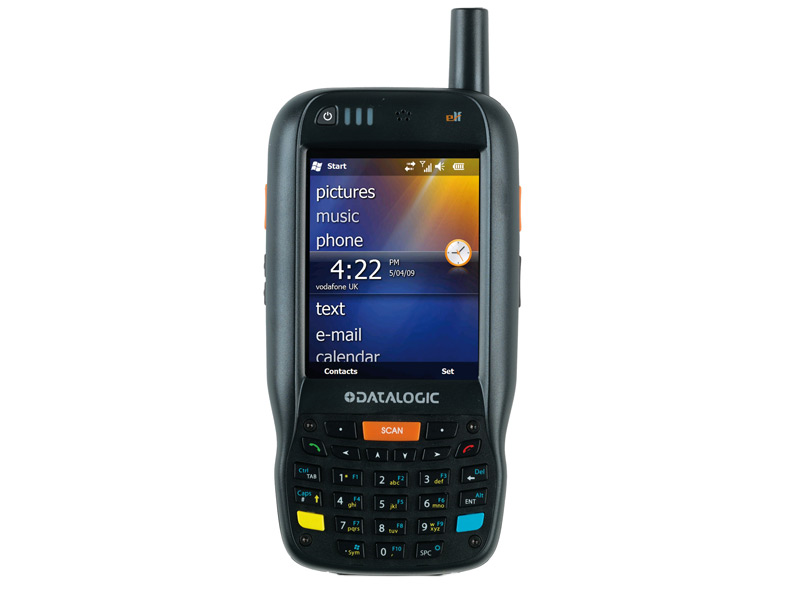

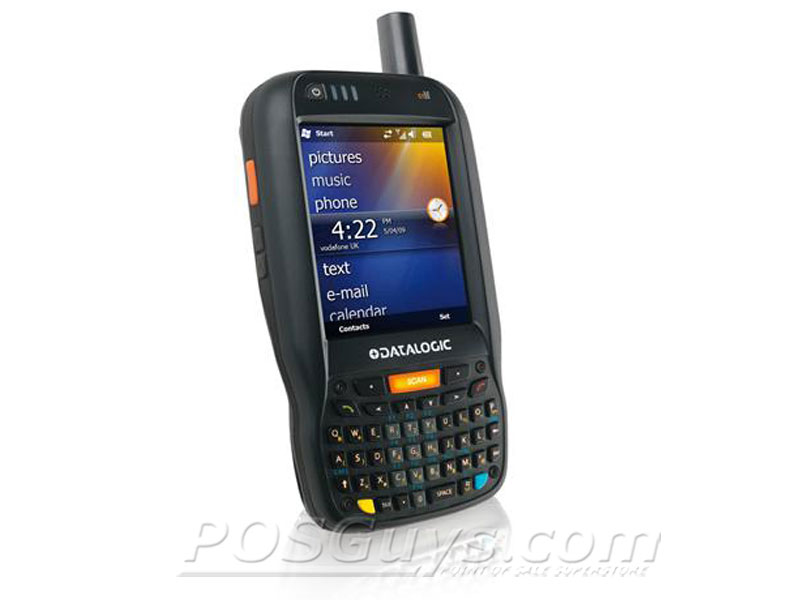

The Datalogic Elf mobile computer combines industrial features with an enterprise design, giving your mobile workforce an elegant data storage and capture solution. Windows Mobile 6.5 drives software on the Elf, giving you the features of a modern mobile platform while maintaining compatibility with legacy Windows Mobile applications.

Built with single-hand use in mind, the Elf's tapered design improves usability and ergonomics. A built-in accelerometer automatically rotates the screen, eliminating awkward display of on screen data, exellent for delivery signing applications. The sleek design of the Elf belies its phenomenal durability, giving you a drop resistance of 5 feet to concrete. In addition, the durable design seals the mobile computer to an IP64 rating, completely keeping out dust and resisting water splashes from any angle.

The Elf comes with your choice of laser scanner or 2D imager, using Datalogic's Green Spot technology to visually identify good reads. To maintain communication, the Elf comes standard with 802.11a/b/g and Bluetooth radios. GPS is an option on additional models, making route navigation a snap.

Features
• Windows Mobile 6.5
• 624 MHz XScale PXA310 Processor
• 256 MB RAM; 256 MB Flash
• 802.11a/b/g, Bluetooth radios standard, GPS optional
• User-accessible MicroSD expansion slot
• 1D Laser Scanner or 2D Imager options
• Modular docking stations allow for easy base station upgrades
Product Specifications
Weight 415 to 440 g (14.6 to 15.5 oz)
Dimensions 6.18 x 3.18 x 1.65 in (157 x 81x 42 mm)
Operating System Windows Mobile 6.5
Processor 624 MHz XScale PXA310
Memory 256 MB RAM, 256 MB Flash
Screen 3.5" TFT LCD at 640 x 480 VGA
Seal Specification IP64
Battery 3.7 V 3000 mAh Li-ion
Camera 3 megapixel autofocus camera with LED flash
Interface USB, Bluetooth, 802.11a/b/g
Cellular Radio UMTS HSDPA, GSM/GPRS/Edge
Expansion MicroSD Slot
Operating Temperature 14° to 122° F
Keyboard 27-Key numeric or 46-key alphanumeric keypad
Scan Method 1D Laser Scanner or 2D Imager
Scan Rate (Maximum) Laser: 104 scan/sec, Imager: 60 frames/sec
Color Options Black

DataLogic Elf Reviews

POSGuys Rating:

Customer Reviews

Accessories

Elf Replacement Battery, High Capacity 5000 MAPH (Batteries must be shipped via ground shipping)
Elf Car Charger Adapter

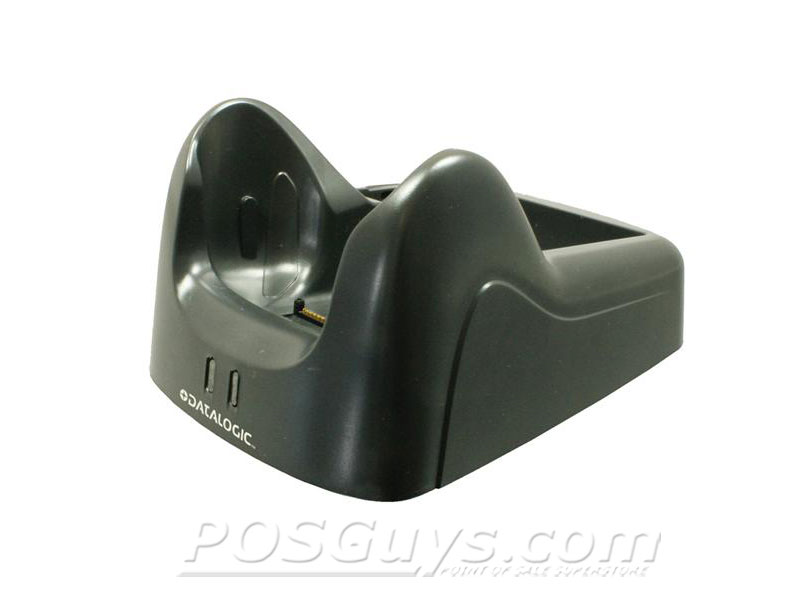

Elf Single Slot Dock with Extra Battery Slot, Includes Power Supply & Line Cord, USB/RS232 Interface
Elf Powered Mobile Dock with Loudspeaker
Elf 4-Slot Ethernet Dock, Includes 4 Extra Battery Slots
Elf 4-Slot Battery Charger
Elf Single Slot Dock Ethernet Adapter Module
Elf Single Slot Dock Modem Module
Elf Replacement Battery, Standard Capacity (Batteries must be shipped via ground shipping)

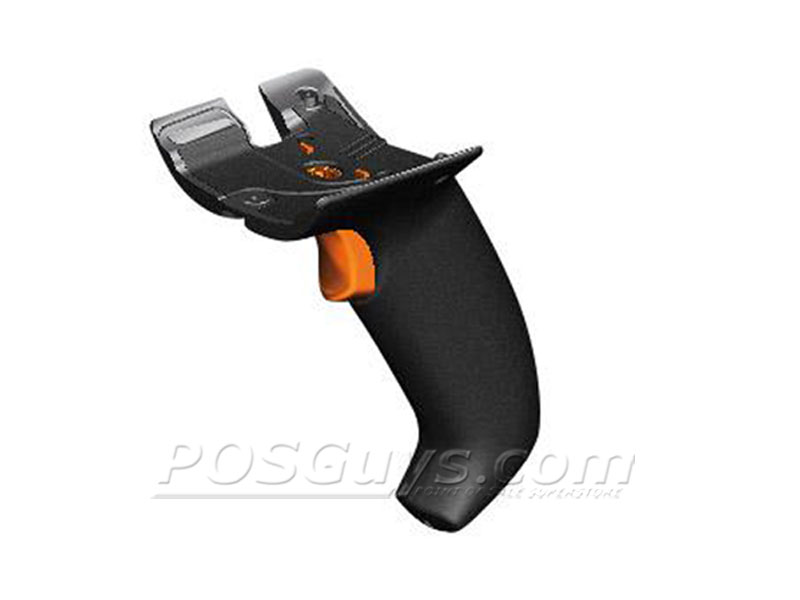

Elf Pistol Grip Handle, Field Replaceable
