Elo TouchSystems 1729L

The pictures shown are general images for product 1729L and may not be applicable to all part numbers

1729L POS Touch Screen Monitor


The Elo TouchSystems 1729L has reached end of life. It has been replaced by the Elo TouchSystems 1715L 17in..

The Elo 1729L 17 inch touchscreen monitor features highly adaptive, compact design, Elo durability, and comes in four different touch technologies, AccuTouch (Resistive), IntelliTouch (Capacitive), CarrollTouch (Infrared), and Acoustic Pulse Recognition (APR). Beyond its versatile touch technology offering, the touchscreen also supports a wide range of optional integrated POS accessories including: 2 x 20 VFD customer display, magnetic stripe reader (MSR), fingerprint reader, and speaker bar with or without barcode scanners. The integrated design of the accessories and availability of parts in two different colors makes selecting an attractive retail or restaurant point-of-sale (POS) system easy.

All of the 1729L monitors include an antiglare surface treatment, professional cable management, and are sealed to resist dirt, dust and splashes. Its native 1280 x 1024 resolution with a 5 x 4 ratio displays clear, precise graphics but can be modified to suit the POS, Kiosk, or other touch application of your choice. (See data sheet for details.)

Features

  • Integrated and compact design
  • 4 touch technology options
  • Desktop, wall or VESA mount
  • “Designed for touch” with stable, removable tilt base
  • Mounting holes in base for secure desktop use
  • Multi-lingual on screen display (OSD)

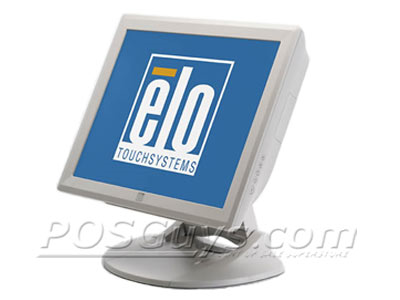

  • Dark grey or beige color options
  • Professional cable management

    Similar touch monitors include the Elo 1715L 17 inch touch monitor and the POS-X EVO-TM2B 17 inch touch screen monitor.
  • Product Specifications
    Display Type 17 Inch TFT Active Matrix Display
    Color Options Dark Grey or Beige
    Interface USB
    Style Desktop - Stable Tilt Base
    Optimal Resolution 1280 x 1024
    Aspect Ratio 5:4
    Contrast Ratio 800:1
    Brightness LCD panel: 300 nits - with AccuTouch: 240 nits - with Acoustic Pulse Recognition: 276 nits - with IntelliTouch: 276 nits - with surface capacitive: 252 nits - with CarrollTouch: 270 nits (typical)
    Colors 16.7 million colors
    Weight 19.32 lb (8.76 kg) (no peripherals)
    Dimensions 15.4 (w) x 15 (h) x 9.42 (d) in. - 391 x 380.6 x 9.42
    Mounting Options Desktop Placement, VESA 100mm x 100mm
    Operating Temperature 0°C to 40°C
    Monitor Input Voltage Input (line) voltage: AC input: 100-240V, 50/60 Hz; AC power cable supplied DC input: 12V ± 0.75V; 12V power supply brick is optional
    Power Drawn 50 W max
    Speakers Two watt/channel speakers located in display head
    Optional Peripherals magnetic strip reader with USB interface - 2 line customer display with USB interface - fingerprint reader with USB interface - speaker bar (two 3-watt speakers) with omni-directional barcode scanner, or single line barcode scanner or without barcode scanner
    Warranty 3 Years

    Elo TouchSystems 1729L Reviews

    POSGuys Rating:

    This is one of the most versatile monitors on the market right now. It’s big enough to handle almost any application and has an extensive line of matching accessories. Conveniently they can be added on as necessary later. We also like the wide range of movement in the tilting base; it’s quite adjustable and can change to fit whatever situation you put it in. Also, the APR technology is a wonderful addition to this product line, we highly suggest trying it out for yourself.

    Customer Reviews

    Accessories

    Magnetic Stripe Reader (MSR) for the 1729L LCD Touch Monitor: Dark Grey, ROHS Compliant, USB Interface
    Speaker Bar for the 1729L LCD Touch Monitor: Dark Grey, Omni-directional Barcode Scanner, ROHS Compliant, USB Interface
    Stylus Pen for use with IntelliTouch Touchscreen Monitor
    Elo Advanced Unit Replacement Service (Must be purchased with an extended warranty service.)
    Elo 1 Year Extended Warranty Service for 22 Inch Widescreen Monitor
    Elo 2 Year Extended Warranty Service for 22 Inch Widescreen Monitor

    Previously Available Models

    Previously Available Accessories
