Pioneer TOM-M7

The pictures shown are general images for product TOM-M7 and may not be applicable to all part numbers

TOM-M7 POS Touch Screen Monitor


The Pioneer TOM-M7 has reached end of life.

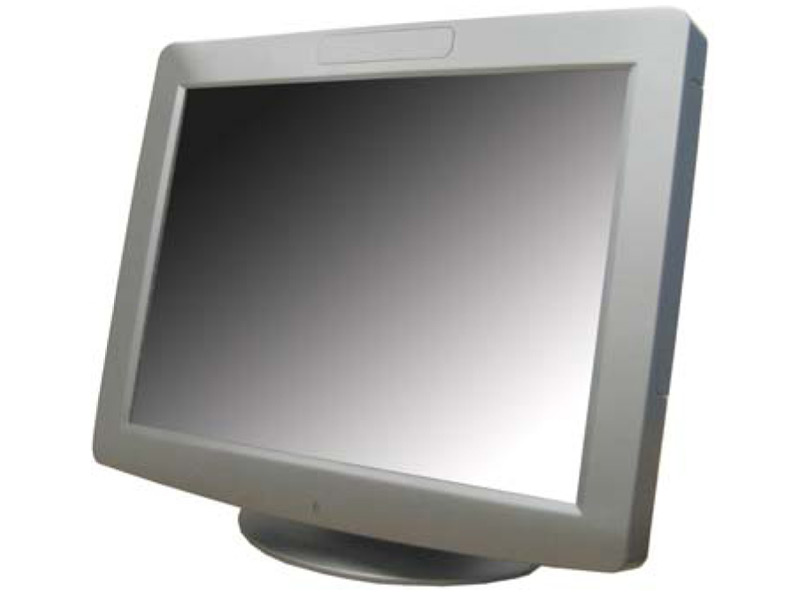

The TOM-M7 is a 17” touch screen monitor with the rugged durability and spill resistance typical of the Pioneer brand. The monitor features four built in USB ports directly beneath the screen which allow keyboard, barcode scanner and printer to be directly plugged into the monitor itself. The integrated USB hub eliminates the need for multiple power cords and promotes easy setup and installation.

Pioneer prides itself on it’s ability to create custom POS solutions, and as such the TOM-M7 17” touch monitor can be purchased with one of four touch technologies, Resistive, Capacitive, Intellitouch or Infra Red. It also comes in a wide range of specifications, allowing for flexibility and extendibility in the future. The adaptability, durability and resistance of this monitor would be well suited for point-of-sales, kiosks, industrial control, gaming, and healthcare. Optional accessories for the TOM-M7 include magnetic card readers, barcode slot readers, fingerprint readers, and rear customer displays.

Features
  • Sealed against spills.
  • Sturdy base & durable construction
  • USB accessories powered by monitor, limiting messy cables
  • Resolutions: 1280x1024 (optimal), 1024x768, 800x600, 640x480
  • Colors: 16.2 million
  • Input Video signal: Analog VGA DB15, or DVI

    For those with a smaller workspace, we suggest the TOM-M5 a 15” version of the TOM-M7 17 inch touch monitor.
  • Product Specifications
    Display Type 17 Inch TFT LCD with Spill Resistance
    Color Options Black or White
    Interface USB
    Style Desktop - Cable Management Base
    Aspect Ratio 4:3
    Colors 16.2 million colors
    Weight 17 lb (8 kg)
    Optimal Resolution 1280 x 1024
    Dimensions 16 (w) x 15 (h) x 11(d) in. - 406 x 390 x 285 mm
    Mounting Options Removable Base, VESA 75mm, Wall or Pole Mount
    Operating Temperature 32°F - 104°F (0°C - 40°C)
    Power Supply External - AC 100-240V - DC Out +12V, 5A

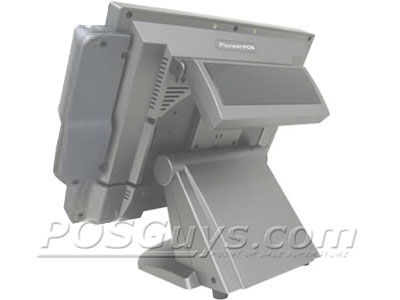

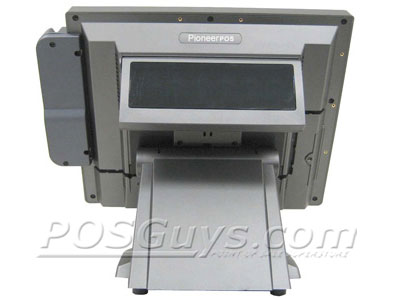

    Optional Peripherals Magnetic strip reader (MSR) with USB interface - fingerprint reader with USB interface - rear customer display - proximity RFID reader - integrated webcam - privacy filter
    Speakers Optional 2 Watt speaker
    Warranty 2 Years

    Pioneer TOM-M7 Reviews

    POSGuys Rating:

    Pioneer makes some of the best touch screen products available and this is no exception, it is a bit more rugged then most of the competition, has a stronger base (less wobble on touches), and does some smart things like has an integrated USB hub on it so you can plug in peripherals directly into the monitor.

    Customer Reviews

    Accessories

    TOM-M7 Magnetic Stripe Reader (MSR): Dark Grey, 3-track, USB Interface

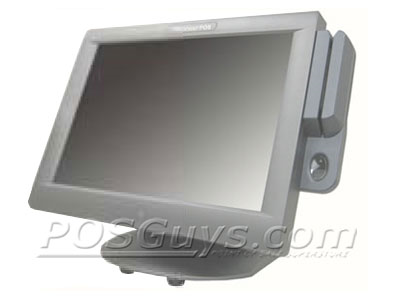

    TOM-M7 Fingerprint Reader and 3-Track Magnetic Stripe Reader (MSR) Combo
