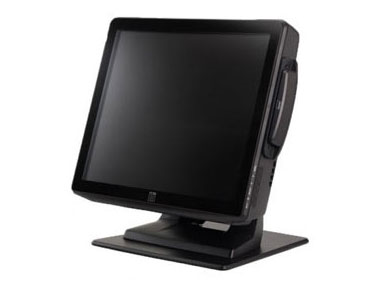

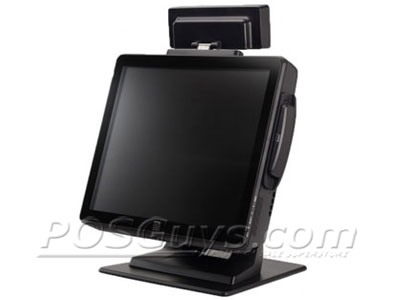

Elo TouchSystems 17B1

The pictures shown are general images for product 17B1 and may not be applicable to all part numbers

17B1 POS Computers


The Elo TouchSystems 17B1 has reached end of life. It has been replaced by the Elo TouchSystems X-Series 17".

The Elo 17B1 POS computer features the reliable performance you expect from Elo products, an ideal choice for any retail, hospitality, or restaurant touchscreen computing. A powerful processor and variety of touchscreen technologies ensure the 17B1 succeeds in most environments.

A 17" touchscreen runs at a native 1280x1024 resolution, displaying your POS software crisply. The 17B1 comes wih your choice of Accutouch Resistive Intellitouch Surfce Acoutic Wave, or Acoustic Pulse Recognition touch technology, allowing you to install the computer best suited for your needs.

Powered by an Intel Celeron Dual Core Proessor rated at 2.2 GHz, the 17B1 is powerful enough to run even the most demanding POS software. 2 GB of RAM, upgradeable to 4 GB, provides the fast loading and operation of POS software you need in high demand environments. Additionl peripherals, including an integrated MSR and customer display, help turn the 17B1 into a great addition to any checkstand.

The Elo 17B1 ships wih a 3 year warranty with additional extended warranties available, providing you with many years of fantastic service.
    Features
  • 2.2 GHz Intel Celeron Dual Core Processor
  • 160 GB SATA HD
  • 2 GB RAM, upgradeable to 4 GB
  • Windows XP Pro, Windows 7 Pro, Windows POSReady 2009, or No OS
  • Accutouch Resistive, Intellitouch Surface Acoustic Wave, or Acoustic Pulse Recognition touch technology
Product Specifications
Color Options Dark Grey
Memory 2GB Low-Profile DDR2 DIMM on 1 of 1 slot
(Replaceable up to 4GB maximum2 on 1 slot)
Processor Intel 2.2GHz Celeron
Dual-Core E1500
512KB L2 Cache
800MHz System Bus
Hard Drive 160GB 2.5" SATA HDD (Accessible capacity may be less.)
Operating System Windows 7 Pro (32-bit only)
Windows POSReady 2009
Windows XP Professional Service Pack 3 (32-bit only)
No Operating System
Ports Standard:
6 USB (4 on I/O, 1 x USB Side Access, 1 x USB Hidden/Protected)
2 USB to Serial RS-232
1 LAN RJ45 (Gigabit)

Optional Ports:
Parallel Port Kit Available
Cash Drawer Port
2nd VGA Port
Video Standard:
Standard HDMI Out

Optional 2nd VGA port expansion card available
Display Type 17 Inch, active matrix TFT LCD
Screen AccuTouch (Resistive)
IntelliTouch (Capacitive)
Acoustic Pulse Recognition
Style Desktop
Aspect Ratio 5:4
Brightness LCD panel: 250 nits
AccuTouch: 200 nits
IntelliTouch: 225 nits
Acoustic Pulse Recognition: 225 nits
Optimal Resolution 1280 x 1024 @60Hz
Weight With Stand: 23.1lbs (10.5kg)
Without Stand: 18.3lbs (8.3kg)
Shipping Weight: 31.7lbs (14.4kg)
Bezel Standard
Colors Dark Grey
Dimensions With Stand: 15.2" x 14.2" x 10.5" (387mm x 361mmx 267mm )

Without Stand: 15.2" x 13.0" x 3.8" (387mm x 330mm x 96mm)
Mounting Options 100mm VESA mount or secure base to tabletop or desktop
Operating Temperature 32°F to 95°F (0°C to 35°C)
Power Supply External 12VDC universal-type power supply brick
AC input voltage: 100-240VAC
Input frequency: 50-60Hz
Maximum output power: 150W (Max draw: 170W)
Speakers Two 2W internal speakers
Optional Peripherals Magnetic Stripe Reader
Customer Display (2x20 VFD)
Biometric Fingerprint Reader (FPR)
Webcam
Warranty 3 Years
Return Policy 20 Days
