CognitiveTPG Blaster Advantage LX

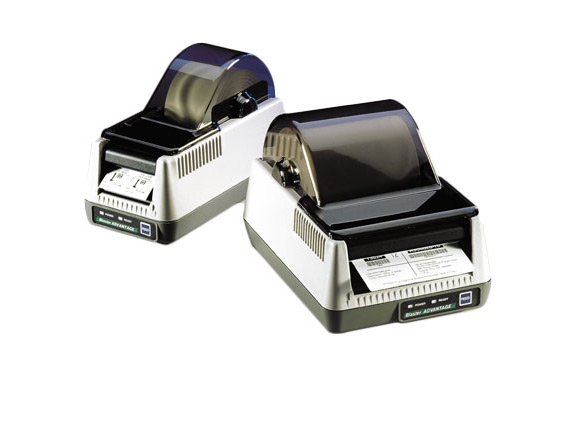

The pictures shown are general images for product Blaster Advantage LX and may not be applicable to all part numbers
Blaster Advantage LX Barcode Printers
The CognitiveTPG Blaster Advantage LX has reached end of life. It has been replaced by the CognitiveTPG DLXi.
*Serial Interface Models Require Cognitive Serial Cable (90-88-0079)
These printers do not ship with labels. For barcode printer labels click here. For ribbons visit the Cognitive TPG Blaster Advantage Barcode Label Stock page.Cognitive warrants to the purchaser, for a 12 month period beginning on the date of purchase from Cognitive, that all printers purchased from Cognitive, with the exception of the thermal print head and the Advantage family printers, shall be free from material and workmanship defects. Cognitive warrants to the purchaser of an Advantage printer, for a period of 24 months beginning on the date of purchase, such printer shall be free from material and workmanship defects.
| Product Specifications | |
|---|---|
| Interface | Bx242003 Model: Serial, parallel, Ethernet (e+Solutions option) Bx422003 Model: Serial and parallel, Ethernet (e+Solutions option) |
| Print Method | Direct thermal (BD models), thermal transfer (BT models) |
| Print Speed | 76 mm / second (3 ips) |
| Print Resolution | 203 or 300 dpi |
| Maximum Print Area | Bx242003 Model Width: 2.2 in (56 mm) Length: 41 in (1040 mm) Bx422003 Model Width: 2.2 in (56 mm) Length: 22 in (559 m) |
| Paper Dimensions | Bx242003 Model Width: 1 to 2.4 in (25 to 61 mm) Roll Diameter: 4.7 in (119 mm) maximum Bx422003 Model Width: 2 to 4.2 in (50 to 106 mm) Roll Diameter: 4.7 in (119 mm) maximum |
| Resident Fonts | Bitmapped: 7 styles with up to 10 x 10 magnification, variable boldness and spacing AGFA Fonts: Sans-serif font in 7 pt. sizes, up to 4 x 4 magnification, variable boldness and spacing Scalable Smooth Fonts: 3 Ultra Font styles for smooth characters in any size and boldness |
| Barcodes Supported | 21 standard bar codes, including: Add2, Add5, Codabar, Code16K, Code39, Code93, Code128A/B/C, D2of5, I2of5, S2of5, EAN8/8+, EAN13/13+, EAN128, Maxicode, MSI/I1, PDF417, Plessey, Postnet, UPCA/A+/E/E1 Rotations: 0°, 90°, 180°, 270° |
| Graphics Printing | Foreground and background bitmapped graphics, sizeable graphics window, Raster, PCX, BMP |
| Memory | 512 KB Flash, 512 KB SRAM |
| Two Color Printing Capabilities | No |
| Auto Cutter | Optional |
| Peeler / Presenter | Optional - label dispenser |
| LCD Display | No |
| Dimensions | Bx242003 Model BT (Thermal Transfer / Direct Thermal Printers): 5W x 6.1H x 9.4D in (127 x 155 x 238 mm) BD (Direct Thermal Printers): 4.7W x 6.1H x 9.4D in (119 x 155 x 238 mm) Bx422003 Model BT Thermal Transfer / Direct Thermal Printers): 6.8W x 6.1H x 9.4D in (173 x 155 x 238 mm) BD (Direct Thermal Printers): 6.8W x 6.1H x 9.4D in (173 x 155 x 238 mm) |
| Wall Mountable | No |
| Operating Temperature | 41°F - 104°F (5°C - 40°C) |
| Software Included | Windows drivers, label design software |
| In The Box | Printer, user guide, power supply, programmer guide, label design software |
CognitiveTPG Blaster Advantage LX Reviews
Solid metal design helps this barcode printer stand up to the most rigorous day to day use.
